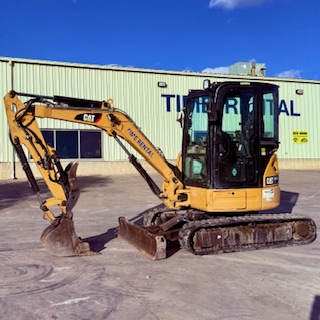

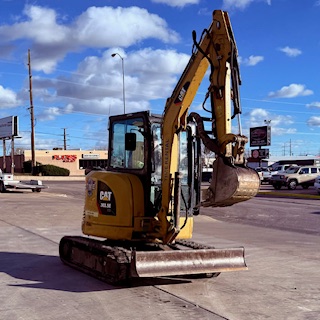

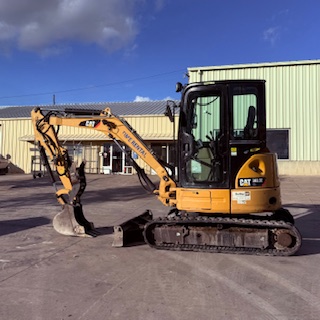

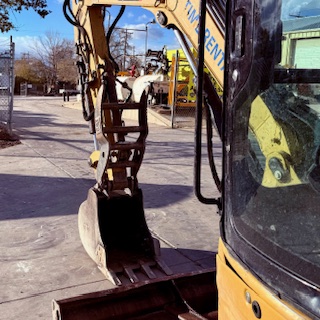

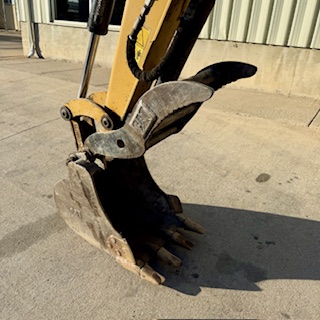

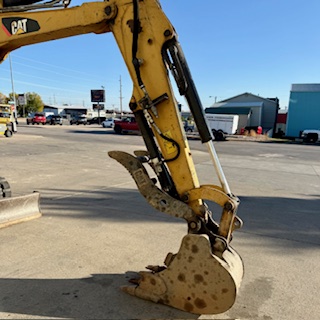

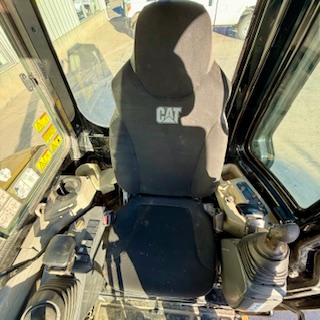

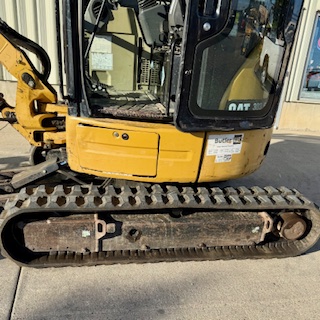

CAT 303.5 CAB and Thumb

Description

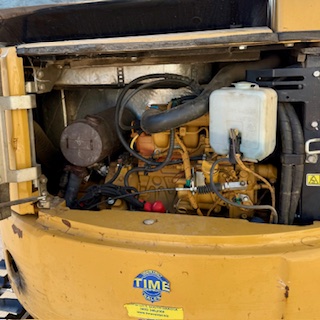

Engine Model Cat® C1.8
Net Power 31.6 hp
Gross Power 33.3 hp

Weight:
Operating Weight 7734.0 lb
Operating Weight with Cab 8139.0 lb

Dimensions:
Max digging depth – standard stick 9.6 ft
Max reach ground level – standard stick 16.7 ft
Height over cab 8.2 ft
Bucket width 20 inch
Max cutting height – long stick 16.5 ft
Max cutting height – standard stick 16.2 ft
Max dump height – long stick 11.9 ft
Max dump height – standard stick 11.5 ft
Max horizontal reach – long stick 17.8 ft
Max horizontal reach – standard stick 17.1 ft
Max vertical dig depth – long stick 8.2 ft
Max vertical dig depth – standard stick 7.7 ft
Track Shoe Width 1.0 ft
Travel Speed – High 2.8 mph
Travel Speed – Low 1.6 mph

Hydraulic System:
Operating Pressure – Equipment 3553.0 psi
Digging Forces – Stick (standard) 4249.0 lb
Digging Force – Stick (long) 3799.0 lb
Digging Force – Bucket 7419.0 lb
Operating Pressure – Travel 3553.0 psi
Operating Pressure – Swing 2625.0 psi
Auxiliary circuit – primary 15.9 gal/min
Auxiliary circuit – secondary 7.1 gal/min

Blade:
Width 70.0 in
Height 12.8 in
Dig Depth 18.5 in
Lift Height 15.7 in

Service Refill Capacities:
Cooling System 1.5 gal
Engine Oil 1.8 gal
Hydraulic Tank 11.2 gal
Fuel Tank 12.2 gal
Hydraulic System 17.2 gal
